DK-2000LUSH-6

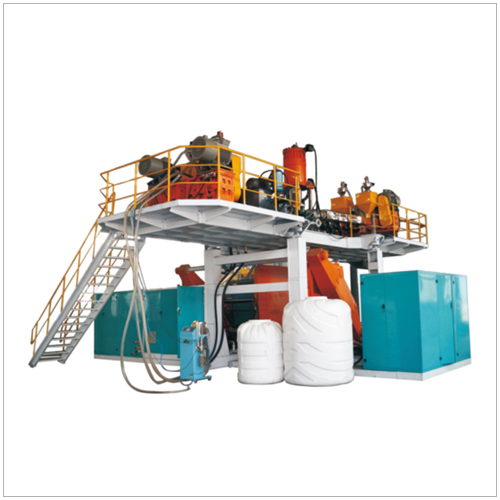

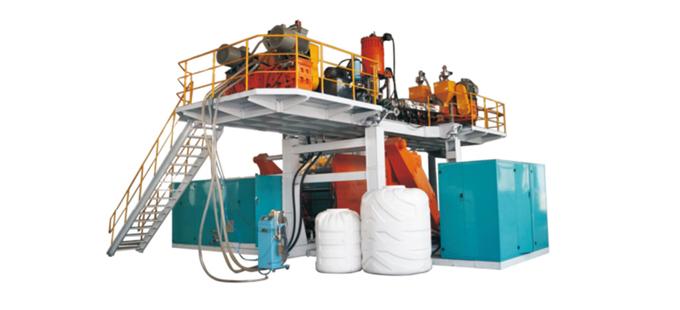

2000L-5 Layers blow moulding machine
Specification
| Working Condition | |
| Working Envionment | Indoor, ventilated |
| Bridge crane height ≥9m | |
| Plant foundation Concrete ≥10cm | |
| Be avoid of magic field | |
| Humidity degree ≤90% | |
| Indoor temperature 0-45℃ | |
| Power Source | 3-phase 4 wires 50Hz，380V-415V |
| Cooling Water | Water temperature ≤20℃ |
| Water pressure ≥0.3Mpa | |
| Water consumption 50T/H | |
| Air Source | Air source pressure 0.8Mpa |
| Air pressure for product forming 0.2-0.4 mpa | |
| Raw Material | HDPE/HMW-HDPE |
| Item | ||||
| Extruder | Four layers | 90/90/90/90MM | ||
| Five layers | 90/80/80/80/90MM | |||
| Six layers | 90/75/75/75/75/90MM | |||
| Machine die head | 100L accumulator type die head | |||
| Clamping Unit | 3 pieces type clamping unit with 2 pull bars | |||
| Machine Frame | machine frame with elevator | |||
| Material loader | Vacuum conveyor | 4 | ||
| Vacuum conveyor | 5 | |||
| Vacuum conveyor | 6 | |||
| Blow Unit | multifunction blow seat | |||
| Robert | adjustable robot | |||
| Hydraulic System | Delta servo main hydraulic unit and Wall thickness control small hydraulic unit | |||
| Pneumatic System | pneumatic control system | |||
| Electric System | Siemens PLC electric system | |||
| Power | Layers | Total power | Average consumption | |
| 4 | 404.5 | 220 | ||
| 5 | 441.5 | 230 | ||
| 6 | 478.5 | 240 | ||
| Machine Dimension (L x W x H) | 11*8*6.5M | |||
| Machine Weight | 50-70TON | |||
| Product Pange | 500-2000L Horizontal Tank and 2500L Vertical tank | |||
| Melting Capacity | 450 KGS / Hour | |||

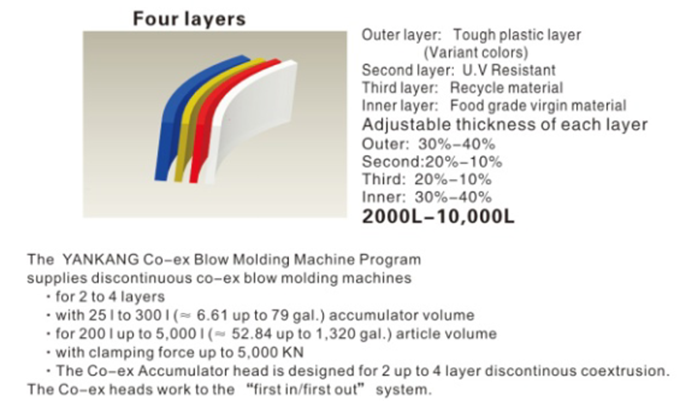

| Layers | 4layers | 1-4 | ||
| 5layers | 1-5 | |||
| 6layers | 1-6 | |||
| Extruder | ||||
| Screw and Barrel | Screw Diameter | Four layers | 90/90/90/90MM | |
| Five layers | 90/80/80/80/90MM | |||
| Six layers | 90/75/75/75/75/90MM | |||
| Screw L/D | 30:1 | |||
| Screw Material | 38CrMoAl | |||
| Barrel Material | 38CrMoAl | |||
| Driving Motors and Inverter | Motor Brand | Siemens motor | ||
| Power | Four layers | 45/45/45/45KW | ||
| Five layers | 45/37/37/37/45KW | |||
| Six layers | 45/37/37/37/37/45KW | |||
| Inverter | ABB AC550 | |||
| Gear Box | Brand | GUOMAO | ||
| Hard Surface and Hardness | ||||
| Water Cooling Unit | Seperated heat exchanger | |||
| Temperature Control | Heaters | Cast aluminum heating ring | ||
| Heating Zone | Four layers | 20 ZONE | ||
| Five layers | 22 ZONE | |||
| Six layers | 26 ZONE | |||
| Heating Power | 54.5KW | |||
| Cooling Hoses Design | With manifold，tidy and won’t block the way. | |||
| Cooling System | Barrel heating zone with cover and cooling fan, feeding zone with water cooling unit | |||
